Rear Light US
    Rear Light US

Rear Light US

108 €
Almost every bike what runs in US have a brake light / indicator combination in the way, that 2 lamps works as brake light and as indicator as well. This makes a conversion of an imported bike from Europe according to the requirements in the US a bit tricky. A conversion of an EU bike according to the requirements in the US is much easier and less cost intensive with the Rear Light US.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Rear Light US

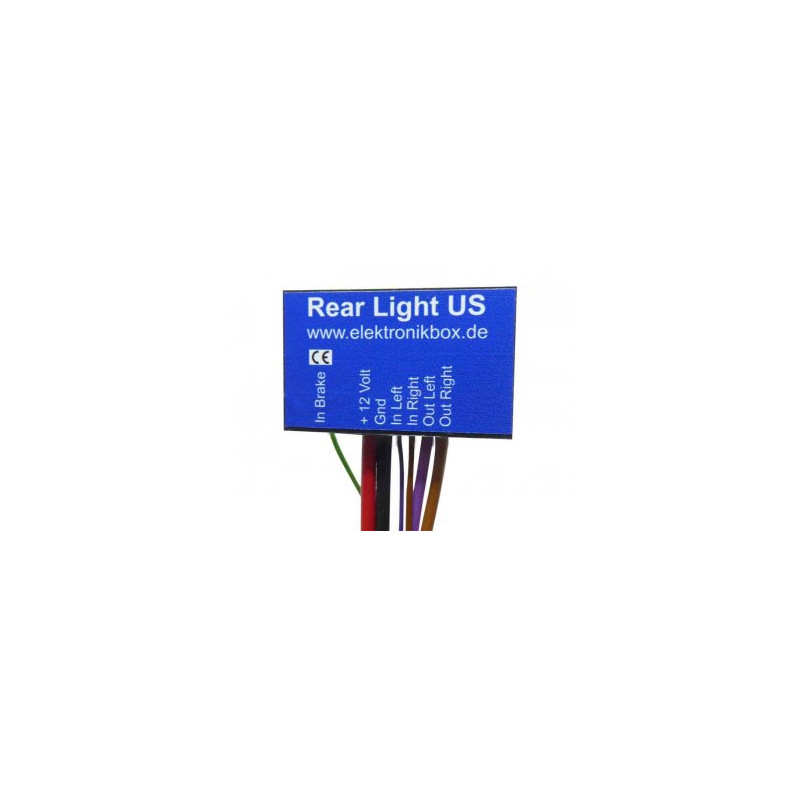

The Rear Light US is a microcontroller based solution what converts the three signals from the direction indicators and the brake light in two separate outputs for brake light / rear light and indicators.

Almost every bike what runs in US have a brake light / indicator combination in the way, that 2 lamps works as brake light and as indicator as well. This makes a conversion of an imported bike from Europe according to the requirements in the US a bit tricky. A conversion of an EU bike according to the requirements in the US is much easier and less cost intensive with the Rear Light US.

Maximum ambience temperature: 80 degree Celsius

DP9821
5 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
40 mm x 25 mm x 12
40 mm x 25 mm x 12
Body material
ABS
Input voltage range
7 - 18 Volt
Maximum temperature
80°C
80°C
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Output power
Max. 21 Watt / Output
