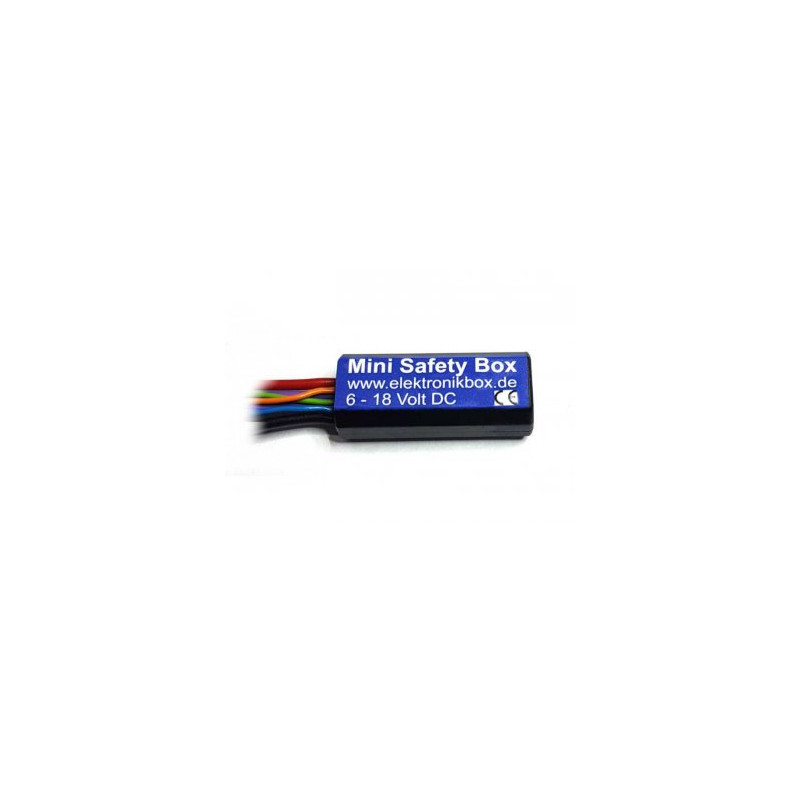

Mini Safety Box
    Mini Safety Box

Mini Safety Box

43 €
The safety module check the 2 inputs for the neutral and sidestand switch and enables the start output when the neutral switch is closed, i.e. no gear is selected. The sidestand switch is also be checked. The ignition is switched off as long as a gear is engaged and the sidestand switch is open.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Mini Safety Box

Almost all control boxes on the market have no input for the neutral switch and the side stand switch. This makes it possible to start the bike when a gear is engaged or it can be started with a folded out side stand. This can cause to unpleasant accidents.

The safety module check the 2 inputs for the neutral and sidestand switch and enables the start output when the neutral switch is closed, i.e. no gear is selected. The sidestand switch is also be checked. The ignition is switched off as long as a gear is engaged and the sidestand switch is open.

This waterproof encapsulated safety module is much smaller and more reliable than the traditional hand-wired solutions.

DP9838
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Inputs
Neutral switch + Sidestand switch
