Touch 2 Switch XL
    Touch 2 Switch XL

Touch 2 Switch XL

44 €
Dimensions: 40 mm x 25 mm x 12,5 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

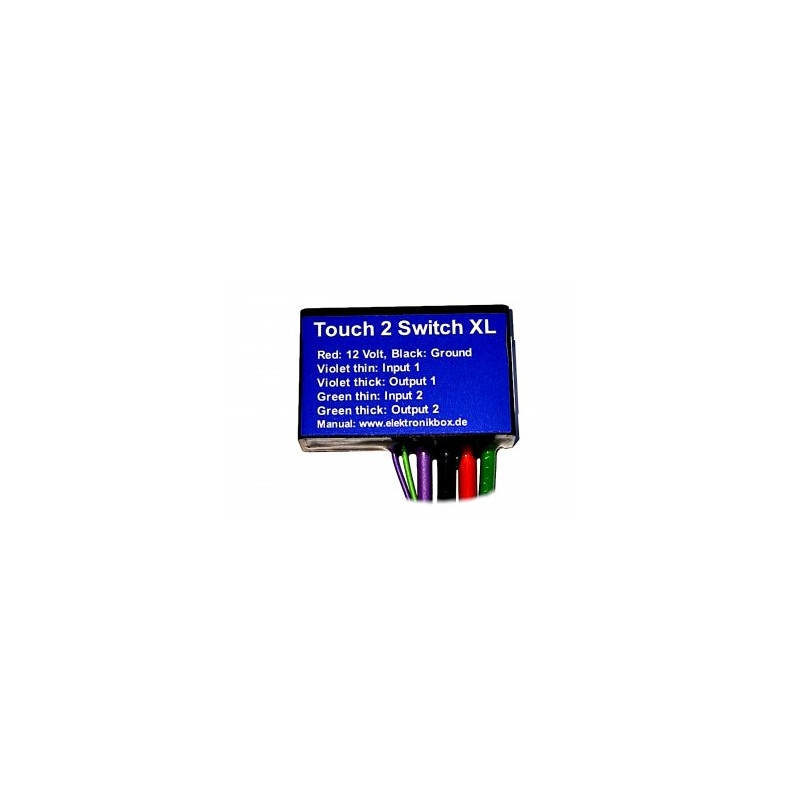

Touch 2 Switch XL

Sometimes there is only a need for 1-2 switch channels what don't require a complete control box. This electronic relay have 2 independent channels what are controlled by 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off. Each output can drive 240 Watt. The maximum power is 360 Watt per module. This allow the switch for additional headlights or other high current loads.

Maximum ambience temperature: 80 degree Celsius

DP9834
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
40 mm x 25 mm x 12
40 mm x 25 mm x 12
Body material
ABS with 2k epoxy resin potted
Input voltage range
6 - 18 Volt
Maximum temperature
80°C
80°C
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum current
20 Ampere / output
Maximum power
360 Watt / module
