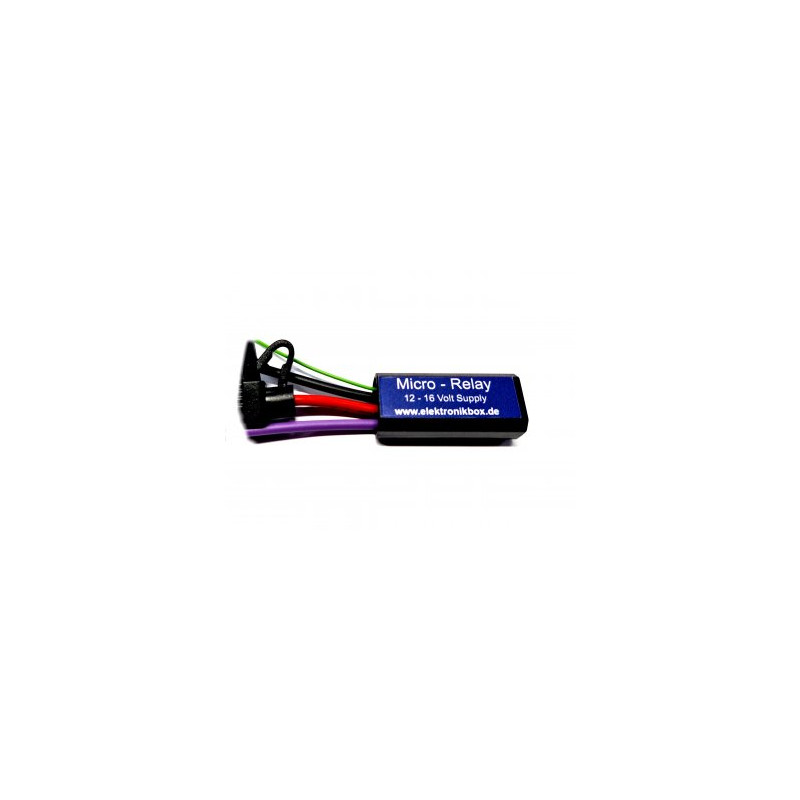

Micro Relay
    Micro Relay

Micro Relay

44 €
Dimensions: 38 mm x 16 mm x 11 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Micro Relay

The micro relay replaces a standard load relay, but does not contain any mechanical parts. This makes the module up to 10 times smaller than a standard load relay. Worn or burnt contacts are now a thing of the past. The output delivers up to 20 amps at 12 volts and is switched when 12 volts are applied to the green cable. An LED indicates the output status.

DP9833
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
12 - 16 Volt
Maximum temperature
80°C
80°C
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum current
20 Ampere
Maximum power
240 Watt
