Easy Keyless RFID
    Easy Keyless RFID

Easy Keyless RFID

201 €
The activation of the module is made via a press on a button. Now you have 15 seconds time to put your rfid tag in front of the antenna. A red led on the antenna indicate the waiting state of the module. If the rfid tag is recognized then the led changes to blue color and the power for the bike is switching on. If the rfid tag is not recognized then the module fall back in sleep mode.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Easy Keyless RFID

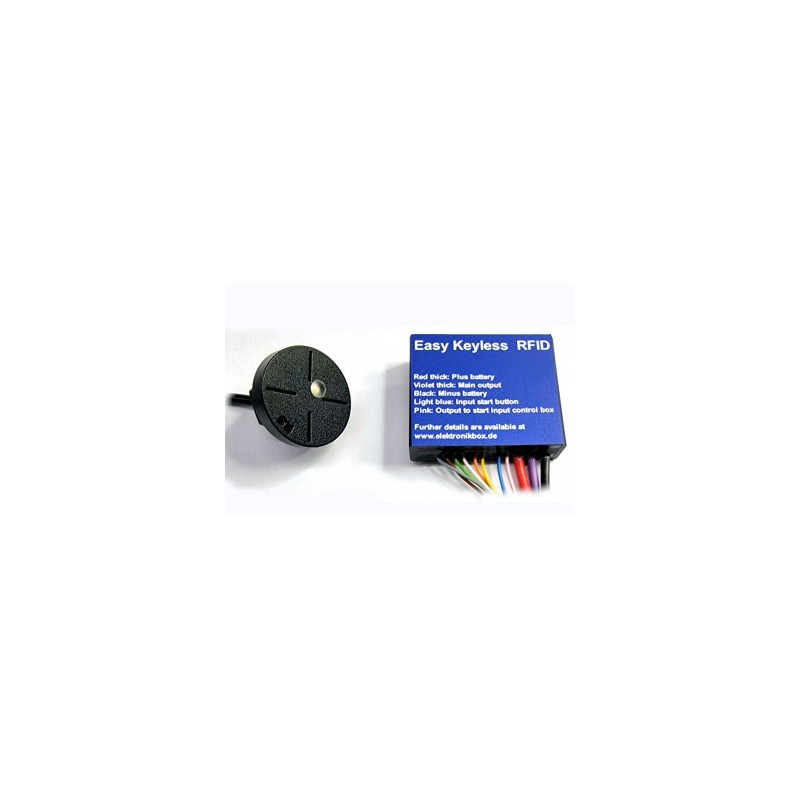

This keyless mainswitch for your bike can be connected with a fingerprint sensor or with an rfid antenna. The Easy Keyless RFID comes with a rfid antenna and 2 rfid tags.

The activation of the module is made via a press on a button. Now you have 15 seconds time to put your rfid tag in front of the antenna. A red led on the antenna indicate the waiting state of the module. If the rfid tag is recognized then the led changes to blue color and the power for the bike is switching on. If the rfid tag is not recognized then the module fall back in sleep mode.

By the way, if you use a control box from us then there is no need to wire an extra button to the module. The Easy Keyless RFID have an extra output what simulate the function of a start button, resulting that you can use your original start button at the bike also for the activation of the module.

DP9822
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
41 mm x 26 mm x 12
41 mm x 26 mm x 12
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Activation time
15 seconds
Included
RFID antenna + 2 RFID tags
