B-Box
    B-Box

B-Box

180 €
- Switch - output for parking light / Plate light / speedo etc.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

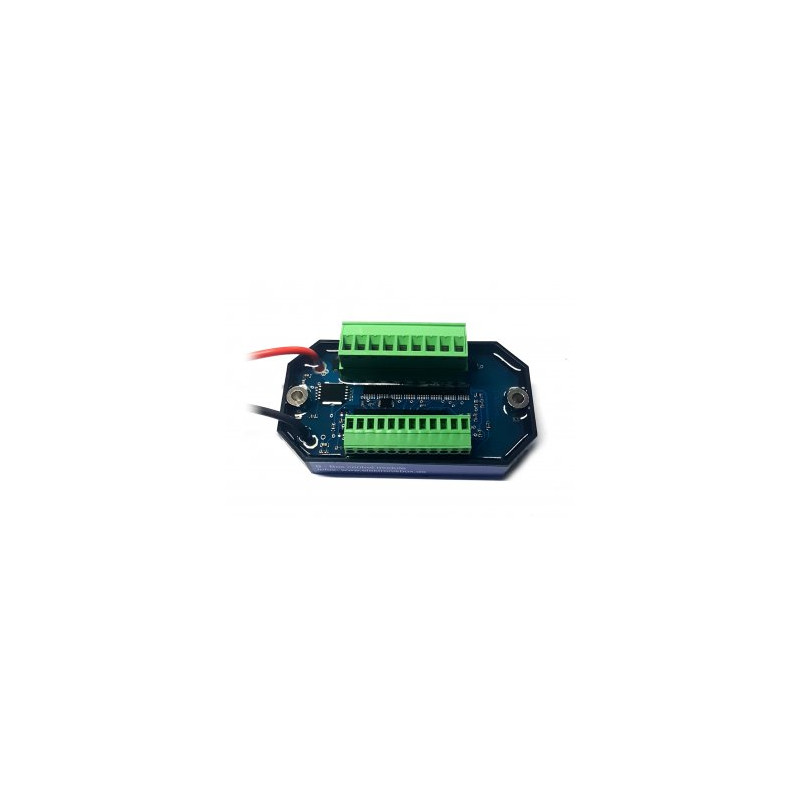

Electronicbox Version B

The B-Box is our response from some clients, who prefer an easy mechanical implementation of the control box in a bike and who don't take care about a bit bigger size compare to our other devices. The B-Box can be controlled with the standard ignition switch. 8 implemented status led's allow a fast check while the installation or the adjustment of the different functions. A 15 Ampere inline fuse in the main line is integrated. However, the outputs are short circuit protected and self resetting. You can control the following functions with the box:

  • Switch - output for parking light / Plate light / speedo etc.
  • Ignition (with or without side stand switch control)
  • Starter (with or without neutral switch control)
  • Headlight with button or switch control
  • Integrated flasher relay, control with buttons or switches
  • Brake light with flasher option
  • 2 buttons option, you can control your bike with only 2 buttons in the handlebar.
  • Horn
DP9801
8 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Body material
ABS plastic
ABS plastic
waterresist potted
waterresist potted
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Inline fuse
15 Ampere
