Micro Speedo Module
    Micro Speedo Module

Micro Speedo Module

52 €
The speedometer is very easy to use: If the button is pressed and held down when the power supply is switched on, the wheel circumference appears on the display in cm and counts up between 50 cm and 220 cm until the button is released. The 4 LEDs on the outside indicate neutral, high beam, indicators and oil pressure.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Micro-Speedo Module

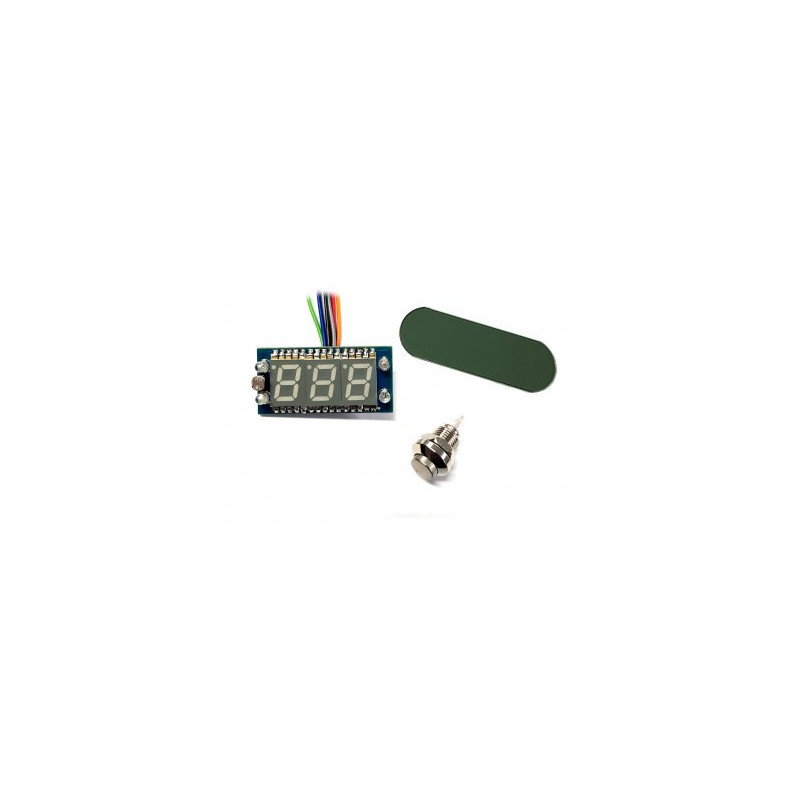

Don't fancy a clock store or Christmas tree on your bike and only want to fit the bare essentials of a speedometer to your bike? Then the Micro-Speedo is the right choice. The module is just 38 x 19 mm in size and 10 mm thick include cables. We decided to offer the module fully assembled and tested incl. 1 mm tinted plexiglass screen and 8 mm stainless steel button. This gives you absolute flexibility with the installation.

The speedometer is very easy to use: If the button is pressed and held down when the power supply is switched on, the wheel circumference appears on the display in cm and counts up between 50 cm and 220 cm until the button is released. The 4 LEDs on the outside indicate neutral, high beam, indicators and oil pressure.

DP9824
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 19 mm x 10 mm
38 mm x 19 mm x 10 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Wheel circumference range
50 - 220 cm
