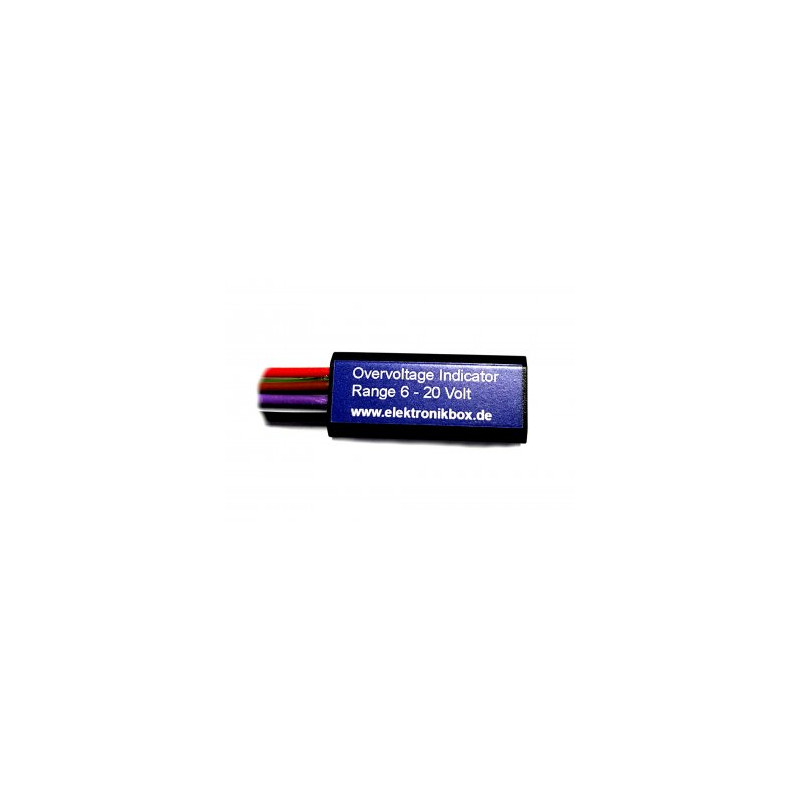

Overvoltage Indicator
    Overvoltage Indicator

Overvoltage Indicator

43 €
As soon as an on-board voltage of 15.1 volts is exceeded for longer than 2 seconds, a warning flasher function is activated via the two blinker outputs and the additional LED output is switched on. In most cases, it is then sufficient to switch off the engine immediately to prevent major damage.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Overvoltage Indicator

A defective charge controller in the moped can be an expensive affair and destroy some of the bike electrics, and a burning lithium battery under the seat or a leaking lead battery due to overvoltage are not really funny...

As soon as an on-board voltage of 15.1 volts is exceeded for longer than 2 seconds, a warning flasher function is activated via the two blinker outputs and the additional LED output is switched on. In most cases, it is then sufficient to switch off the engine immediately to prevent major damage.

An undervoltage detection is also integrated. If the battery voltage falls below 12.1 volts for more than 3 seconds, the LED output and the flasher outputs flash in a different pattern.

DP9840
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Overvoltage trigger
1 Volt
15
Undervoltage trigger
1 Volt
12
