Flasher Checker
    Flasher Checker

Flasher Checker

72 €
If an indicator fails in subsequent operation, i.e. the current consumed falls below 20% of the normal operating current, the Flasher Checker activates the hazard warning function for as long as the flasher relay is activated. The hazard warning function switches off automatically when the flasher relay is deactivated.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

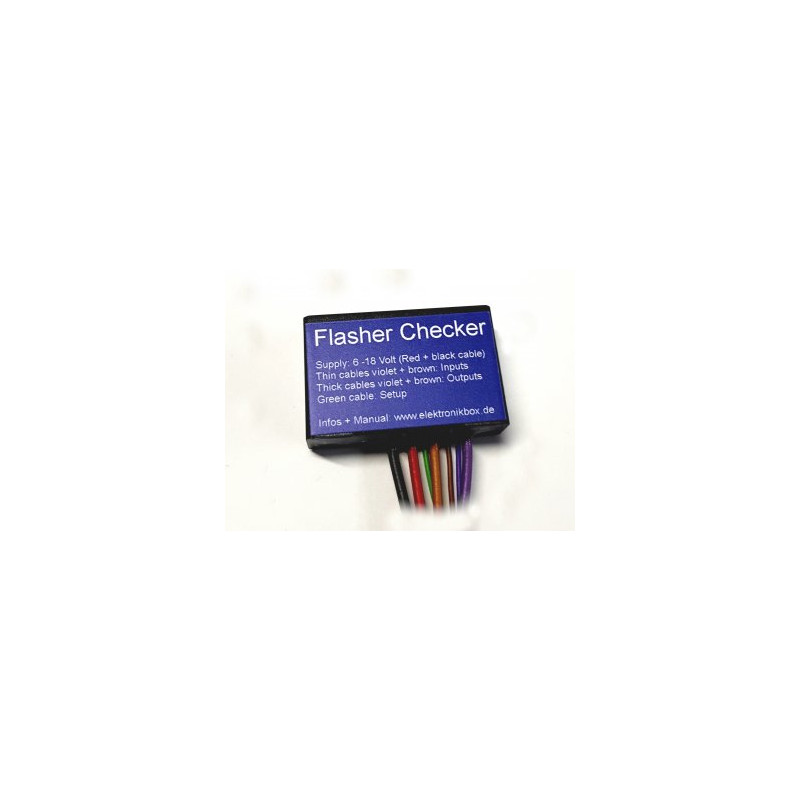

Flasher Checker

After replacing the original indicators with LED indicators, the flashing frequency is often increased because the current drawn by the flasher relay or BCM has been greatly reduced. The Flasher Checker is simply clamped between the flasher relay and the indicators and monitors the performance of the indicators during operation. Programming is very simple: you connect the green cable to the left indicator input and the yellow cable to the right indicator input. The device then learns the normal operating current of the indicators during the first 5 flashing cycles.

If an indicator fails in subsequent operation, i.e. the current consumed falls below 20% of the normal operating current, the Flasher Checker activates the hazard warning function for as long as the flasher relay is activated. The hazard warning function switches off automatically when the flasher relay is deactivated.

Input voltage range: 7 - 18 Volt

DP9809
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
