Gear Indicator Adapter
    Gear Indicator Adapter

Gear Indicator Adapter

41 €
Dimensions: 41 mm length x 26 mm wide x 12,5 mm height
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

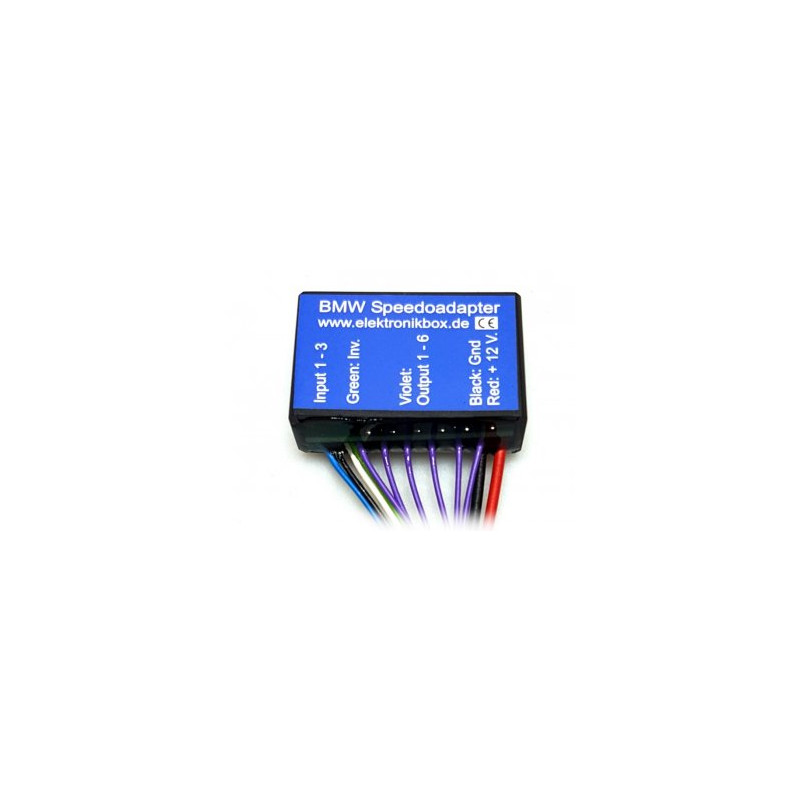

Gear Indicator Adapter for BMW K-Models

The Speedoadapter for BMW K models allow an easy implementation of the 3 gearbox switches to a modern standard speedometer with inputs for the neutral and gear number indication. The green cable allow to invert the output signals and allow a connection to a wide range of speedometers. You can also connect 6 led's for the gear indication to the outputs if your speedo have no gear indicator implemented.

Input voltage range: 7 - 18 Volt

DP9852
15 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
41 mm x 26 mm x 12
41 mm x 26 mm x 12
Body material
ABS plastic
waterresist potted
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Compatible with
BMW K-models
