Mini Headlight Relay
    Mini Headlight Relay

Mini Headlight Relay

44 €
You can use the module with a permanent switch if you wire the yellow cable to ground. The module works with a push button if the yellow cable is not connected. By the way, you can switch off the headlight in the button mode when you press the button for more than 2 seconds. A further press on the button switch on the headlight again.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

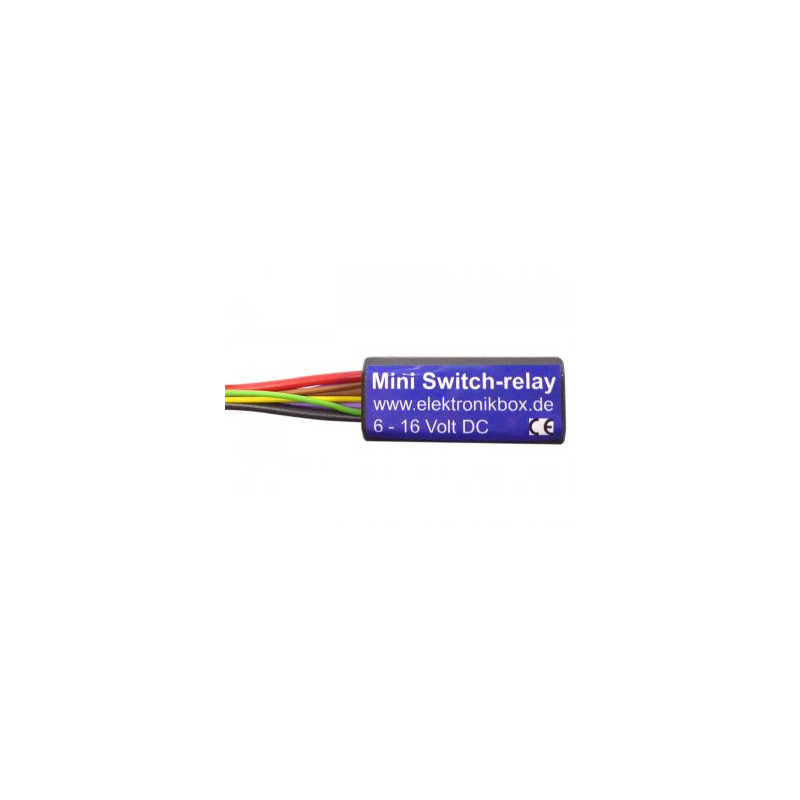

Mini Headlight Switch Relay

This electronic relay for the headlight control have 2 implemented power outputs what can drive 60 Watt / each. The small size allow an installation in the handlebar or in the headlight. Three additional cables allow the following options:

You can use the module with a permanent switch if you wire the yellow cable to ground. The module works with a push button if the yellow cable is not connected. By the way, you can switch off the headlight in the button mode when you press the button for more than 2 seconds. A further press on the button switch on the headlight again.

The low beam is immediately on after switching on the ignition if the brown cable is unconnected. The low beam is off after switching on the ignition and it switches on after a button press if the thin brown cable is wired to ground.

The low beam switches off when you change to high beam if the green cable is not connected or the low beam stay on if the green cable is wired to ground.

DP9804
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
6 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum output power
60 Watt / output
