Fusebox
    Fusebox

Fusebox

125 €
This fuse box contains 6 separate outputs which switch off in the event of a short circuit and switch on again after the short circuit has been eliminated. 4 of the outputs have continuous positive and 2 outputs can be switched on or off via 2 buttons. This can be used to switch additional headlights, cell phone chargers, etc. In addition, the supply voltage is monitored and the outputs in the mod
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

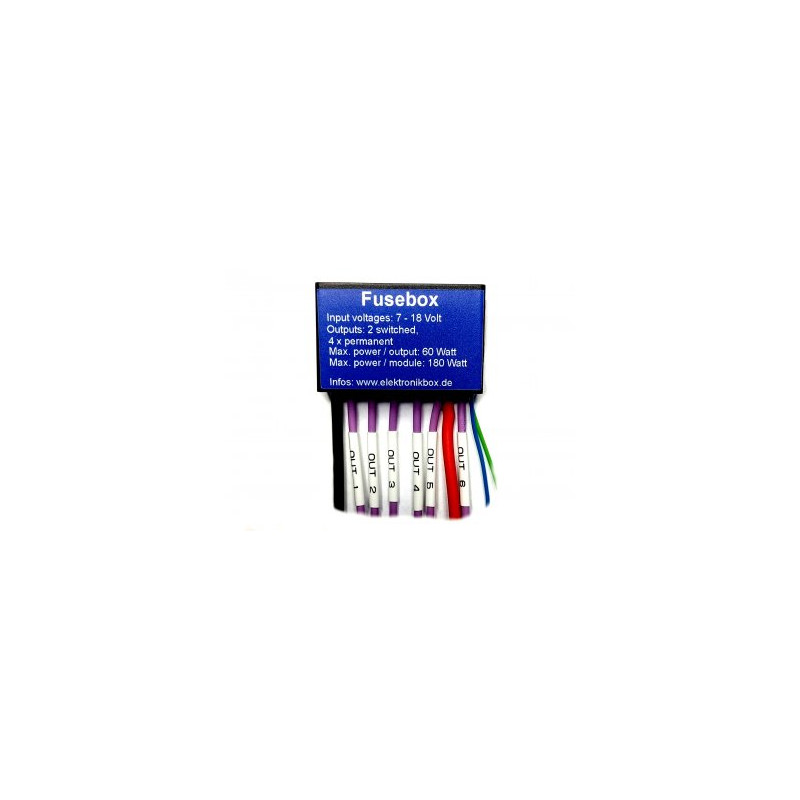

Fusebox

A bike often requires several individually fused supply voltages. A standard fuse box is often almost the size of a pack of cigarettes and still contains the old fuses, which blow in the event of a fault and may leave the bike stranded somewhere on the side of the road.

This fuse box contains 6 separate outputs which switch off in the event of a short circuit and switch on again after the short circuit has been eliminated. 4 of the outputs have continuous positive and 2 outputs can be switched on or off via 2 buttons. This can be used to switch additional headlights, cell phone chargers, etc. In addition, the supply voltage is monitored and the outputs in the module switch off after approx. 5 seconds if the supply voltage drops below 11.5 volts due to a defective charge controller.

DP9837
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
90 mm x 45 mm x 22 mm
90 mm x 45 mm x 22 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Number of outputs
6
Switchable outputs
2
Undervoltage cutoff
5 Volt
11
