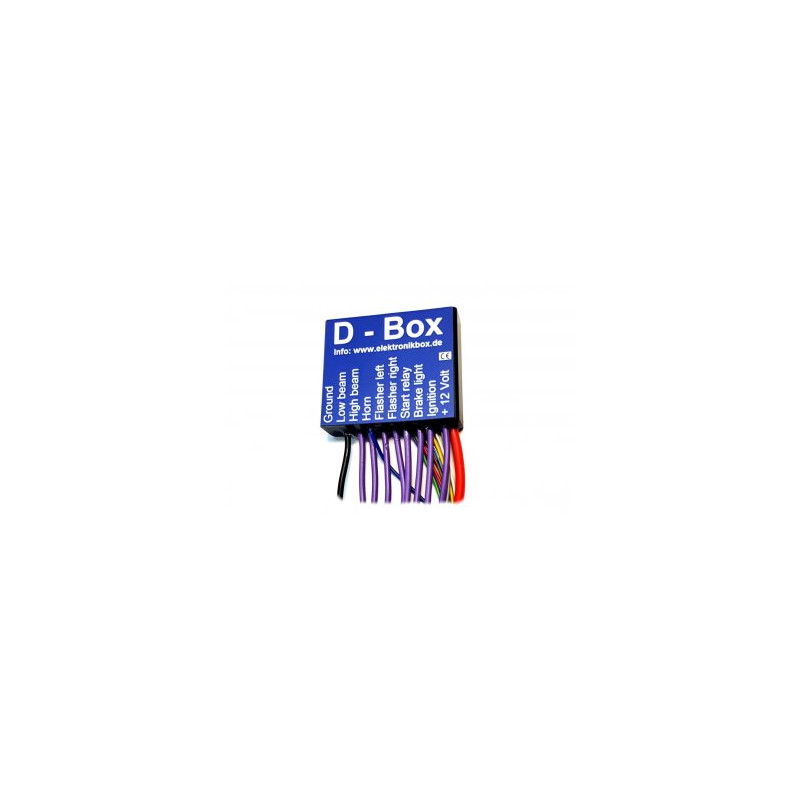

D-Box

Electronicbox Version D

This electronic box version D is probably the most flexible control box on the market. It controlls the main functions of your motorbike with push buttons or switches. The following options are possible:

• Integrated flasher relay, contol with buttons or switches
• Integrated output for direction indicator in the cockpit
• Integrated sidestand - and neutralswitch inputs if security options in the box are activated
• Auto flasher off function, emergency flasher, "Position light" mode adjustable
• An additional output for the flasher indicator led in the speedo reduce additional wirings.
• Control of low - and high beam possible with a button or a switch
• Control of starter relay
• Control of the horn
• Brake light control
• Aux output for rearlight, platelight and speedo power.
• 8 status led's at the outputs give a visible response of the power outputs.

The new D-Box can be controlled via only 2 push buttons and there is no need for the use of a key switch anymore. The key switch is optional. Our 8 mm stainless steel push buttons fit in the most handle bars. The D-Box can be controlled with switches as well for a more traditional installation.

Maximum output current: 5 Ampere for Headlight, 3 Ampere for the other outputs, current limited by 5 Ampere
