Flasher Merger
    Flasher Merger

Flasher Merger

13 €
Dimensions: 14 mm x 9 mm x 5 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Flasher Merger

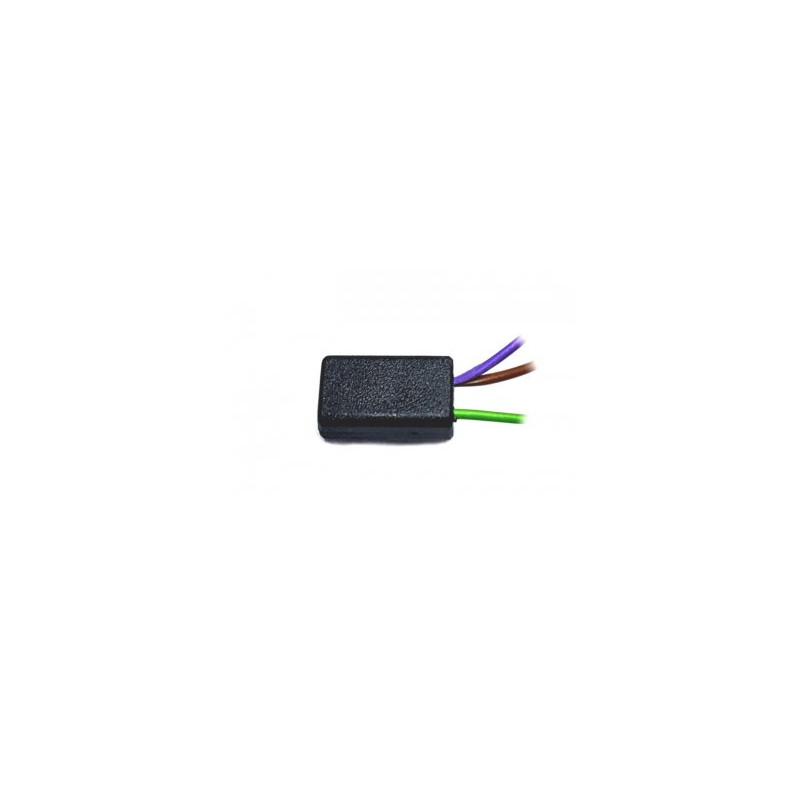

The Flasher Merger is connected between the 2 direction indicators and the indicator led in the dashboard or speedo. Two diodes are implemented. The module allow the control of one indicator led for both flashers. The maximum load is 100 mA or 1,2 Watt. The modul is waterproof potted what makes it simple to install without the need to wire 2 diodes, insulate it and try to get it waterproof.

DP9815
42 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
14 mm x 9 mm x 5 mm
14 mm x 9 mm x 5 mm
Body material
ABS
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum current
100 mA
Maximum power
1
2 Watt
