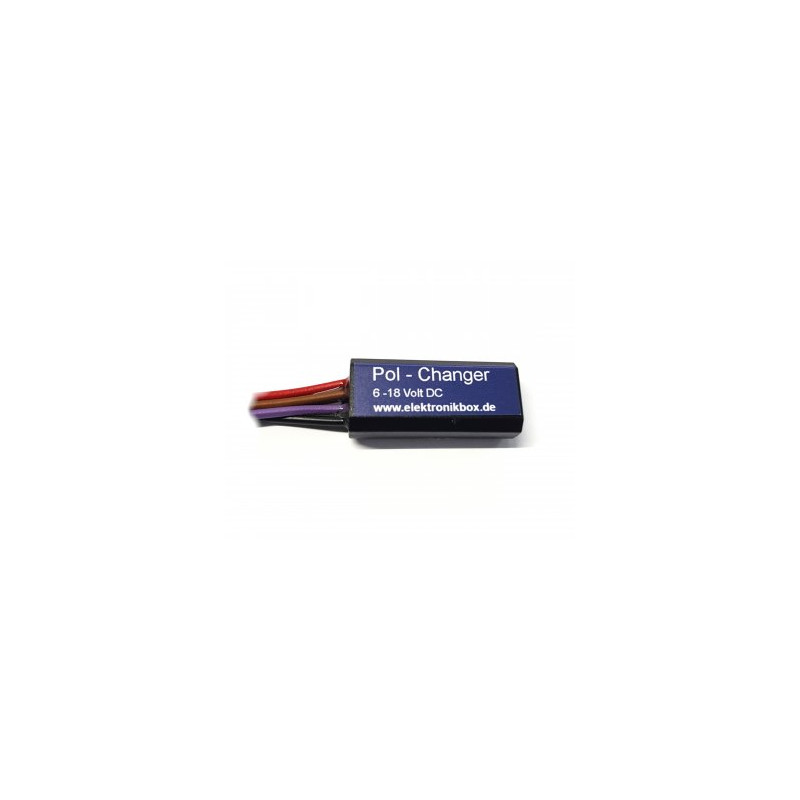

Pol Changer
    Pol Changer

Pol Changer

43 €
Dimensions: 38 mm x 16 mm x 11 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Pol Changer

Some bikes switch the outputs for the direction indicators to minus, when active. This make a change of the original indicators against aftermarket indicators a bit tricky. This polarity changer is the solution for it. It convert the ground switched signal from the bcm module or flasher relay to a positive supply voltage for the indicators. The module contains 2 separate channels. The maximum load is 60 Watt per side.

Maximum ambience temperature: 80 degree Celsius

DP9836
20 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
6 - 18 Volt
Maximum temperature
80°C
80°C
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum output power
60 Watt / output
