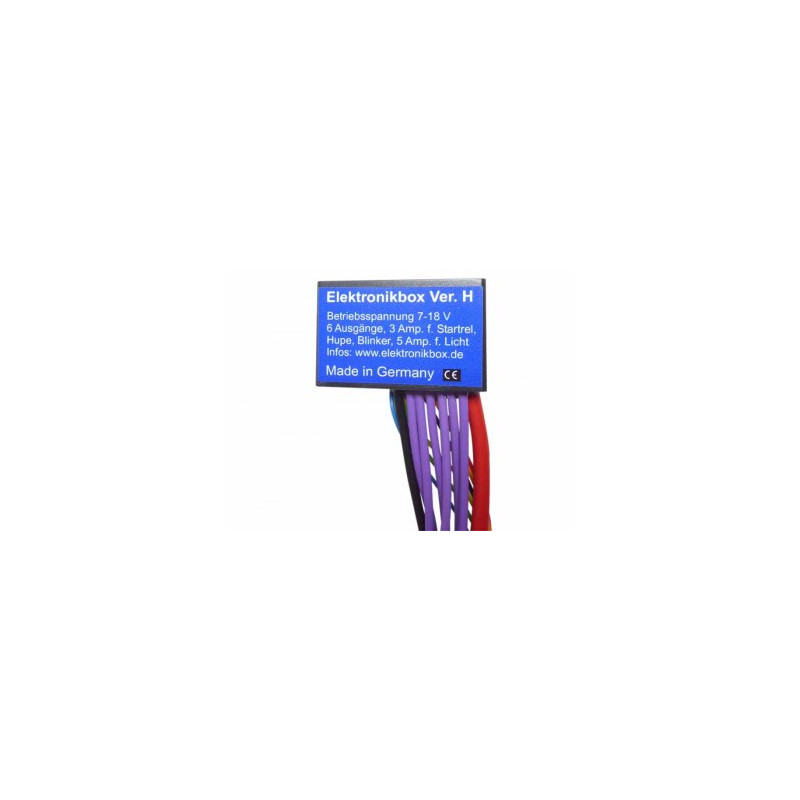

Electronicbox Version H

Size does matter! This is the smallest electronicbox on the market. The box is able to control the main electrical functions of your motorcycle from a central location. The Electronicbox provides the following functions:

  • Light control with switch and push button possible
  • Integrated flasher relay, control via push buttons or switches
  • The bike can be controlled by 2 buttons or 5 buttons.
  • 6 status led's for the output control integrated.
  • emergency flash function
  • comfort flasher function
  • Control of horn
  • Control of starter relais or brake light.
  • Output for direction indicator led in speedo.

The 2 button mode is easy to use:

  • A short press on one of the buttons will activate the indicators.
  • A longer press (> 0,3 sec) on the left button switch on the horn.
  • 2 short presses on the left button change between the low - and high beam.
  • A long press (> 0,3 sec) activate the starter if the starter option is set.

Input voltage range: 7 - 18 Volt

DP9803
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
5 mm
5 mm
41 mm x 26 mm x 12
41 mm x 26 mm x 12
Body material
ABS plastic
waterresist potted
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
