EHC 04
    EHC 04

EHC 04

415 €
The following functions are implemented:
Quantity
Last items in stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

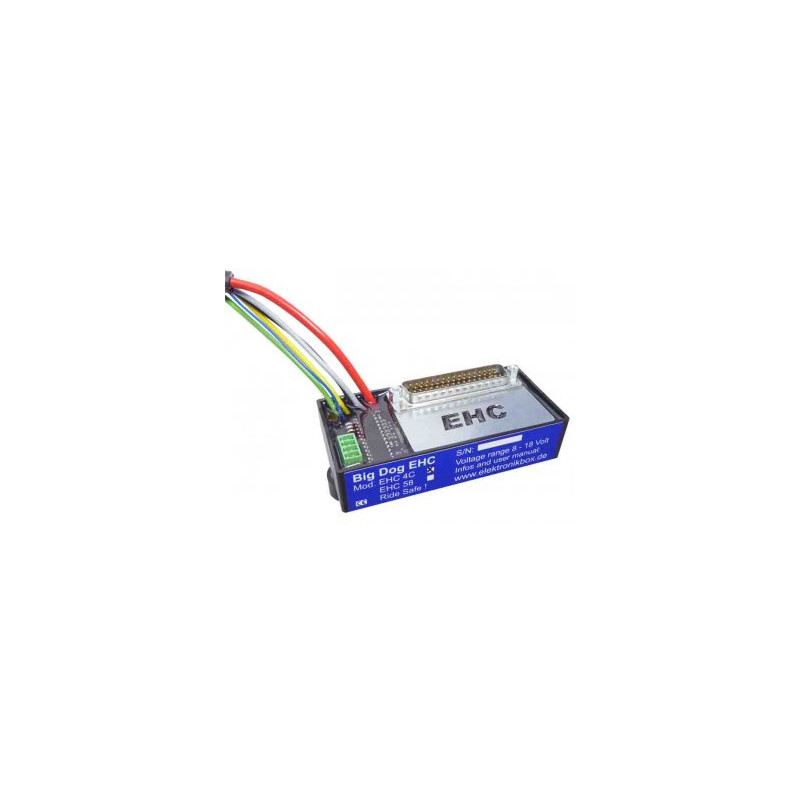

EHC for Big Dog 2004

This EHC replacement controlls the functions of your Big Dog bike. Our EHC are made as "Plug & Play" control boxes for a fast change (about 10 minutes) against the old device. There is no need to spend some hours for cablework, stripping etc... Some changes compare to the original EHC provide a better performance and lifetime.

The following functions are implemented:

  • Flasher control
  • Auto flasher off function, emergency flasher
  • Control of low - and high beam.
  • Control of ignition, starter and compression reliefs.
  • Control of the horn
  • Brake light control include dim function of the rear light

The most outputs of the EHC are short circuit protected and self resetting when a short circuit is not present anymore.

DP9846
3 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Type
Plug & Play replacement
Compatible model
Big Dog 2004
Big Dog 2004
Installation time
~10 minutes
