Lunchbox Adaptor
    Lunchbox Adaptor

Lunchbox Adaptor

96 €
The reserve led for models up to 1985 is flashing when the fuel level is below 7 liter and it is continous on when the fuel level is below 4 liter. The housing is from a 3D printer and it's waterproof with epoxy glue potted.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

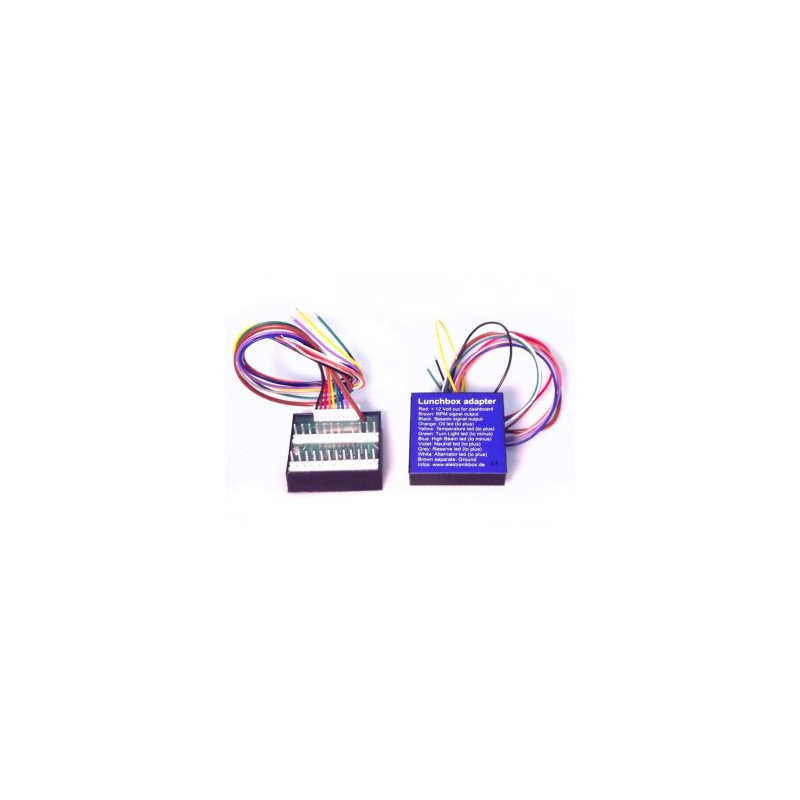

Lunchbox Adaptor for BMW K-Models

The Lunchbox-Adapter allow the connection of different new speedos on the old harness connector what was connected to the old BMW speedo in older K models. It makes the conversion of the old harness signals to a modern speedo easy. The speed signal is amplified and now compatible to aftermarket speedos. 10 output cables allow to indicate all necessary signals. The neutral signal is now compatible to modern speedos and the virtual load for the alternator is implemented as well.

The reserve led for models up to 1985 is flashing when the fuel level is below 7 liter and it is continous on when the fuel level is below 4 liter. The housing is from a 3D printer and it's waterproof with epoxy glue potted.

Input voltage range: 7 - 18 Volt

DP9850
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Input voltage range
7 - 18 Volt
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Housing
3D printed
waterproof epoxy
Compatible with
BMW K-models
Output cables
10
