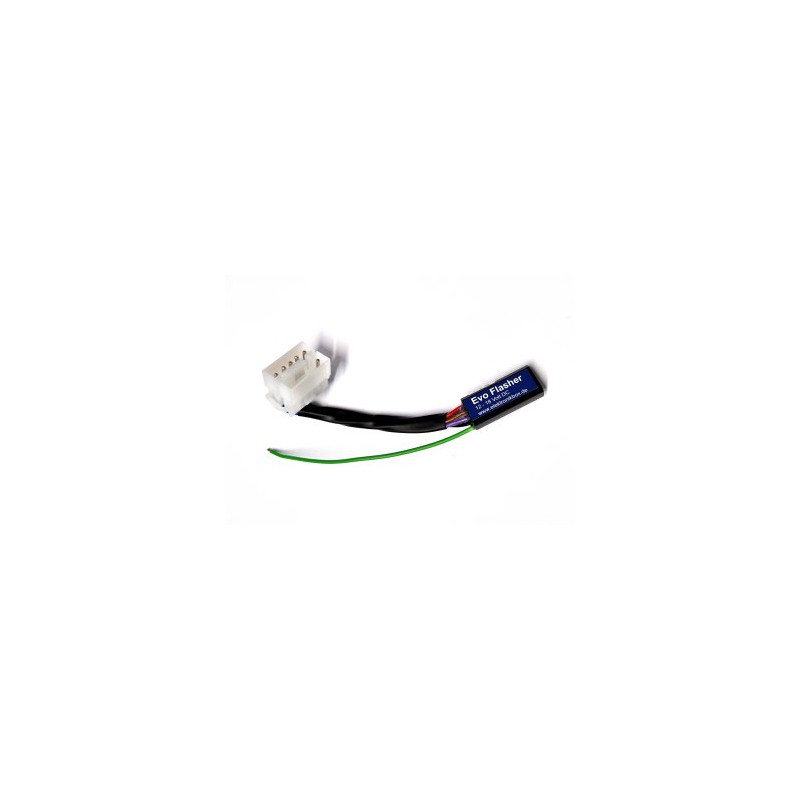

This module replaces the old Harley turn signal module 68537-89G and, thanks to modern electronics, is significantly smaller and more robust than its predecessor.
An auto-cancel function is integrated into the module. The corresponding output flashes 4 times when a turn signal button is pressed briefly for less than 0.5 seconds and then switches off. This function can be used for overtaking. If the button is pressed for longer than 0.5 seconds, the output flashes 40 times. The auto-cancel function can be deactivated by connecting the green wire to ground.
A hazard warning light function is also integrated. This is activated by simultaneously pressing the left and right turn signals and deactivated by pressing either button.
The flashing speed is independent of the connected load, so LED turn signals or halogen bulbs can be used.
