Multi Flash C
    Multi Flash C

Multi Flash C

43 €
Just connect the red cable to plus 12 Volt ignition, the black cable to ground / chassis, the thin input cables to the two outputs of the flasher relay in your bike and the thick output cables to your indicators. That's it.
Quantity
Last items in stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

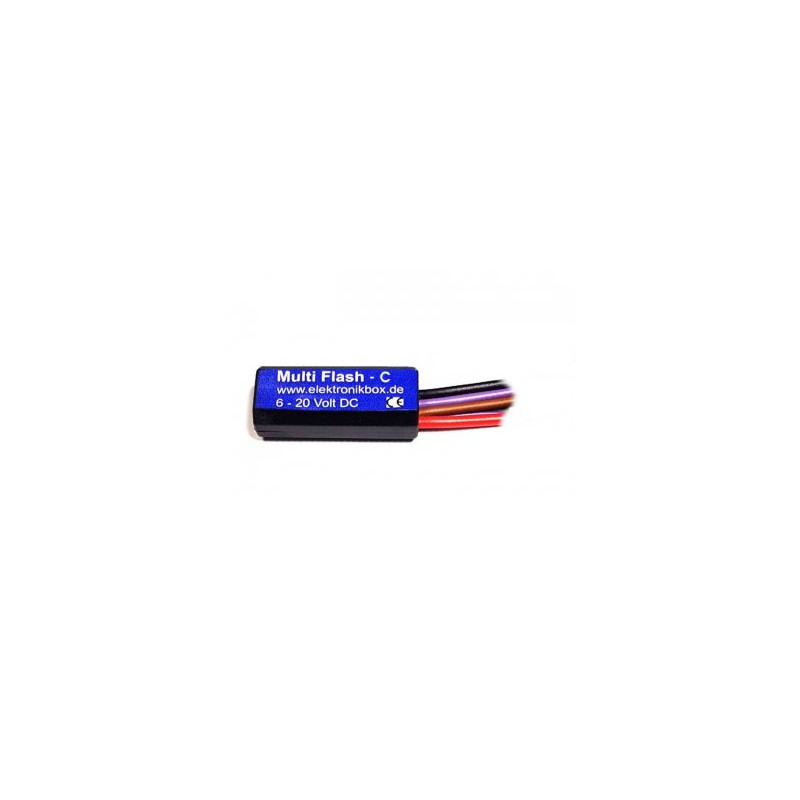

Multi Flasher C

Have you changed your oem indicators against led devices and still have some trouble with a far too high flasher frequency at the indicators? The Multi Flasher C (The C stands for constant frequency) convert any flasher frequency or even a permanent switched output of the OEM flasher relay to 90 flashes / minute.

Just connect the red cable to plus 12 Volt ignition, the black cable to ground / chassis, the thin input cables to the two outputs of the flasher relay in your bike and the thick output cables to your indicators. That's it.

Please note that this module can not convert the flasher frequency of the indicator in your dashboard if you have a CAN bus bike. In this case is the Vari Load the better solution.

Input voltage range: 7 - 18 Volt

DP9811
1 Item

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Flash frequency
90 flashes / minute

16 other products in the same category:

TSM4U
Quick view

TSM4U

98 €
Availability: 3 In Stock
A short press of a turn signal button (less than 0.5 seconds) for overtaking causes the corresponding turn signal to flash 4 times. A longer press (more than 0.5 seconds) causes the corresponding turn signal to flash 40 times. This auto-cancel function can be disabled by switching on the dip switch on the pcb.
Fuel Indicator
Quick view

Fuel Indicator

41 €
Availability: 16 In Stock
The adjustment of the reserve level is easy: Just connect the module, fill the first required amount of gasoline in the tank and hold the green cable for a moment to ground / Minus. Now the module have store the first value. Then fill the next gasoline level in the tank and repeat the procedure and the module have stored the second fuel level.
Rear Light EU (Indian)
Quick view

Rear Light EU (Indian)

108 €
Availability: 10 In Stock
The Rear Light EU is a module for Indian bikes with emergency flasher function. It converts the two signals from the original flasher / brake light combination in four separate outputs for brake light / rear light and indicators. A brakelight dim function is activated by default.
H-Box
Quick view

H-Box

128 €
Availability: 10 In Stock
- Light control with switch and push button possible

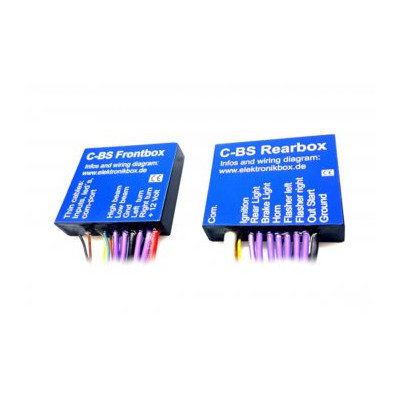

Wiązka cyfrowa C-BS
