Marker Light X
    Marker Light X

Marker Light X

43 €
You can also remove the marker light function of the BCM module if you wire the Marker Light X between BCM module and the indicators. This eliminate the marker light function of the indicators.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

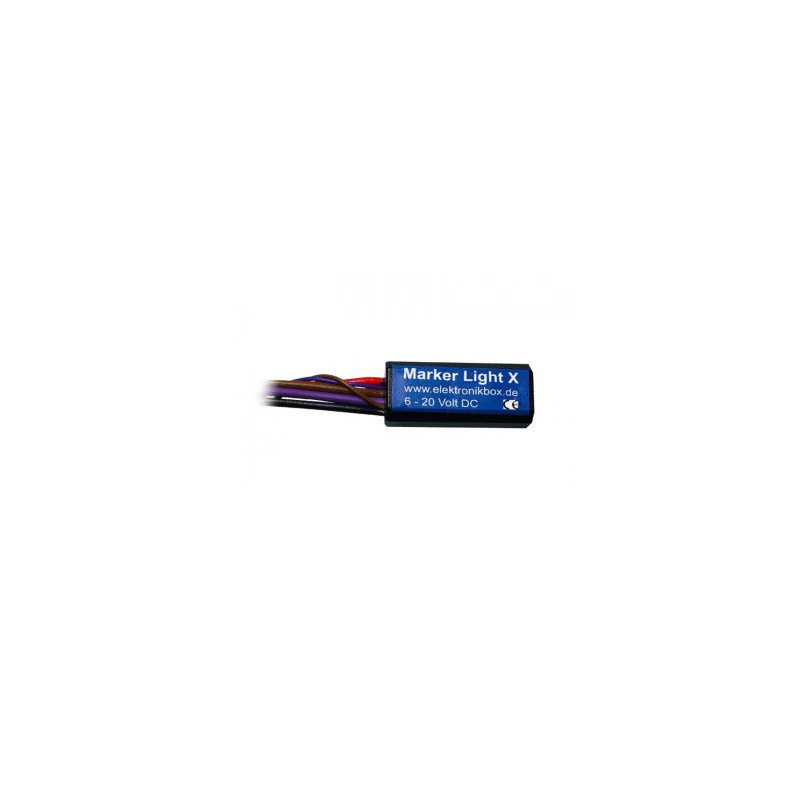

Marker Light X

The contrast of the direction indicators is often very low in combinations with marker lights due to the brightness of the marker lights. Our Marker Light X module switch off an external marker light in the moment when you switch on the direction indicators at one side. This increase the contrast of the indicators and they are easier to recognize from the other traffic.

You can also remove the marker light function of the BCM module if you wire the Marker Light X between BCM module and the indicators. This eliminate the marker light function of the indicators.

An other option is the a low light function what the Marker Light X can add to your installed flasher system if you wire the Marker Light X between flasher relay and indicators and wire the yellow cable to ground. The brightness of the indicators can be set to 20 % or 50 % of the maximum brightness if the flasher relay is not activated.

Maximum output power: 60 Watt / output

DP9814
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum output power
60 Watt / output
