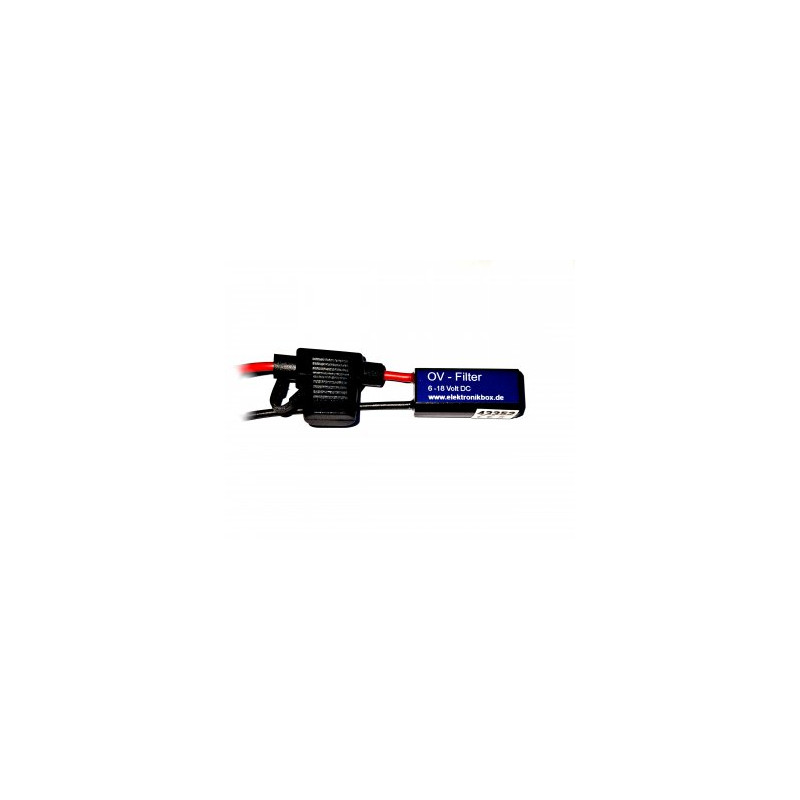

OV Filter
    OV Filter

OV Filter

22 €
- The ignition produces approx. 20000 - 30000 volts, which means that narrow needle pulses of up to 100 volts or more can be measured on the cables. These overvoltages are often sufficient to destroy parts of the electronics after some time.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

OV Filter

The power supply in a motorbike is generally specified as 12 volts. Normally, however, the supply voltage is anything but 12 volts. In addition, the following effects occur:

  • The ignition produces approx. 20000 - 30000 volts, which means that narrow needle pulses of up to 100 volts or more can be measured on the cables. These overvoltages are often sufficient to destroy parts of the electronics after some time.
  • All inductivities in the moped generate a negative voltage the moment they are switched off. Although this voltage is only of short duration, it can reach minus 20 - 30 volts in the starter motor, for example.

The OV filter smoothes the supply voltage and short-circuits all pulses below a few microseconds to ground via a capacitor. The negative pulses are absorbed by an integrated diode.

DP9839
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Input voltage range
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
