TSM4U
    TSM4U

TSM4U

98 €
A short press of a turn signal button (less than 0.5 seconds) for overtaking causes the corresponding turn signal to flash 4 times. A longer press (more than 0.5 seconds) causes the corresponding turn signal to flash 40 times. This auto-cancel function can be disabled by switching on the dip switch on the pcb.
Quantity
Last items in stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

TSM4U

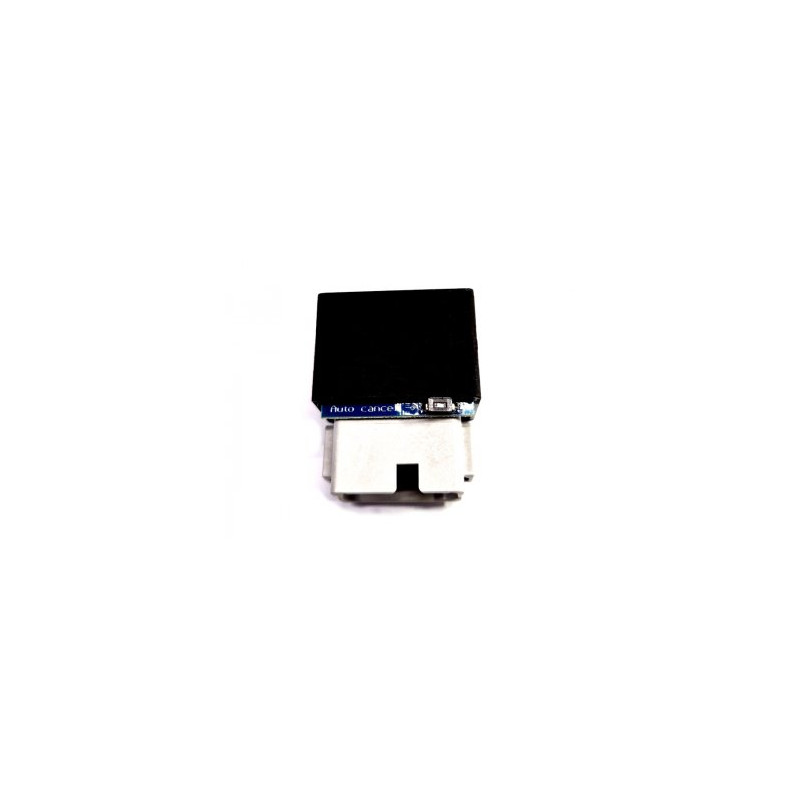

This module replaces the old Harley TSM turn signal module for carburetor models that had the ignition module with two 12-pin connectors (gray and black) installed between model years 1999 and 2003. It supports ignition enable, starter enable, and has an integrated automatic turn signal cancel function.

A short press of a turn signal button (less than 0.5 seconds) for overtaking causes the corresponding turn signal to flash 4 times. A longer press (more than 0.5 seconds) causes the corresponding turn signal to flash 40 times. This auto-cancel function can be disabled by switching on the dip switch on the pcb.

A hazard warning light function is also integrated and is activated by pressing both turn signal buttons simultaneously.

The flasher frequency is independent from the load, no matter if led inserts or halogen bulbs are installed.

Please note that the module is intended for carbureted bikes.

DP9857
3 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Auto-cancel short press
4 flashes
Auto-cancel long press
40 flashes
Compatible models
Harley Davidson carbureted 1999-2003
Harley Davidson carbureted 1999-2003
Connector
Two 12-pin connectors
