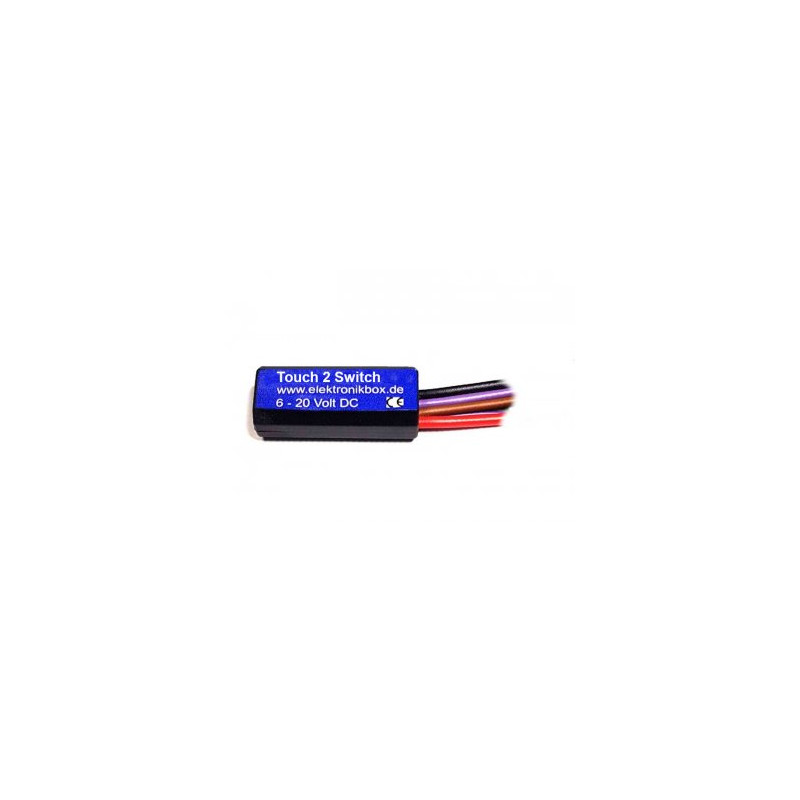

Touch 2 Switch
    Touch 2 Switch

Touch 2 Switch

44 €
You can use the module also as a standard headlight relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the 2 outputs.
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

Touch 2 Switch

This electronic relay have 2 independent channels what are controlled by 1 or 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off. Each output can drive 60 Watt. The small size allow an installation in the handlebar or in the headlight.

You can use the module also as a standard headlight relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the 2 outputs.

Advantages:

  • Sometimes there is only a need for 1-2 switch channels what don't require a complete control box.
  • The 2 inputs can be linked together in order to use it as headlight relay.
  • The small dimensions allow an implementation in the most handle bars.
DP9806
10 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
38 mm x 16 mm x 11 mm
38 mm x 16 mm x 11 mm
Body material
ABS with 2k epoxy resin potted
Input voltage range
6 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum output power
60 Watt / output
