E-Harness
    E-Harness

E-Harness

460 €

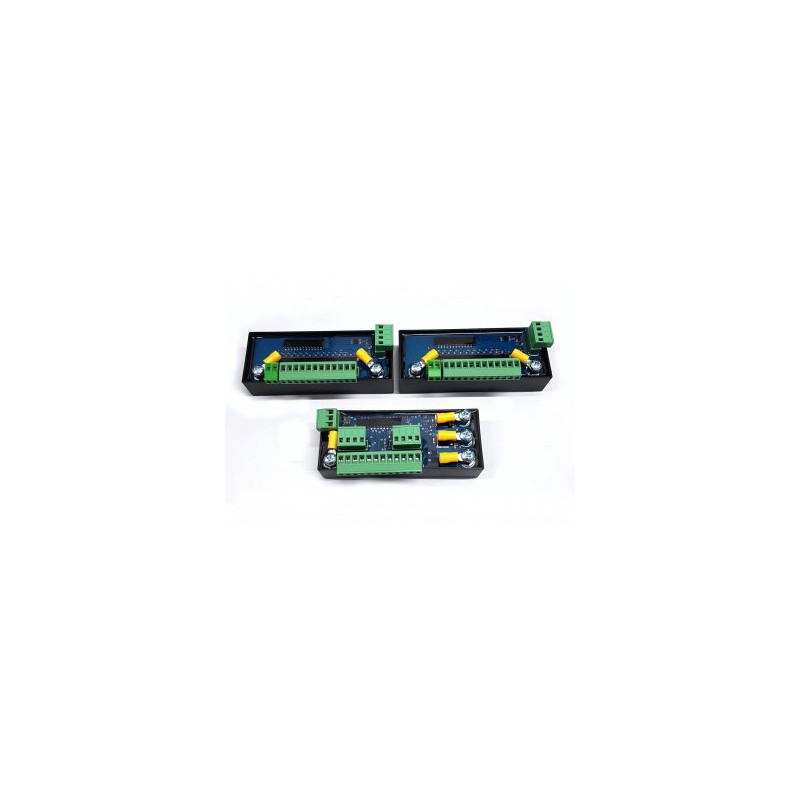

The E-Harness contain a dashboard control module and 2 power modules what control the 12 Volt power to all lights and other 12 Volt devices in a car. All switches and buttons at the dashboard are connected to the dashboard module. The modules "talk" via a small 2-wire data line. Almost all power outputs are short circuit protected and self resetting after the short circuit.
Quantity
Last items in stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

E-Harness - Universal Digital Harness for Cars

This set is the first choice for the supply of all 12 Volt devices in e-mobility vehicles and for the restauration of classic cars if you need to change the original harness due to its age.

The E-Harness contain a dashboard control module and 2 power modules what control the 12 Volt power to all lights and other 12 Volt devices in a car. All switches and buttons at the dashboard are connected to the dashboard module. The modules "talk" via a small 2-wire data line. Almost all power outputs are short circuit protected and self resetting after the short circuit.

This digital harness saves more than 100 meters of cable compare to a traditional harness.

Input voltage range: 7 - 18 Volt

DP9860
3 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Input voltage range
7 - 18 Volt
7 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Modules
1 dashboard + 2 power modules
Data line
2-wire
