Nanoflash
    Nanoflash

Nanoflash

16 €
Dimensions: 15 mm x 9 mm x 5 mm
Quantity
In stock



Safe shopping

  Types of deliveries and payments:

[see details]

  Complaints and returns:

[see details]

available payment methods

Guarantee safe & secure checkout

Delivery time shipment

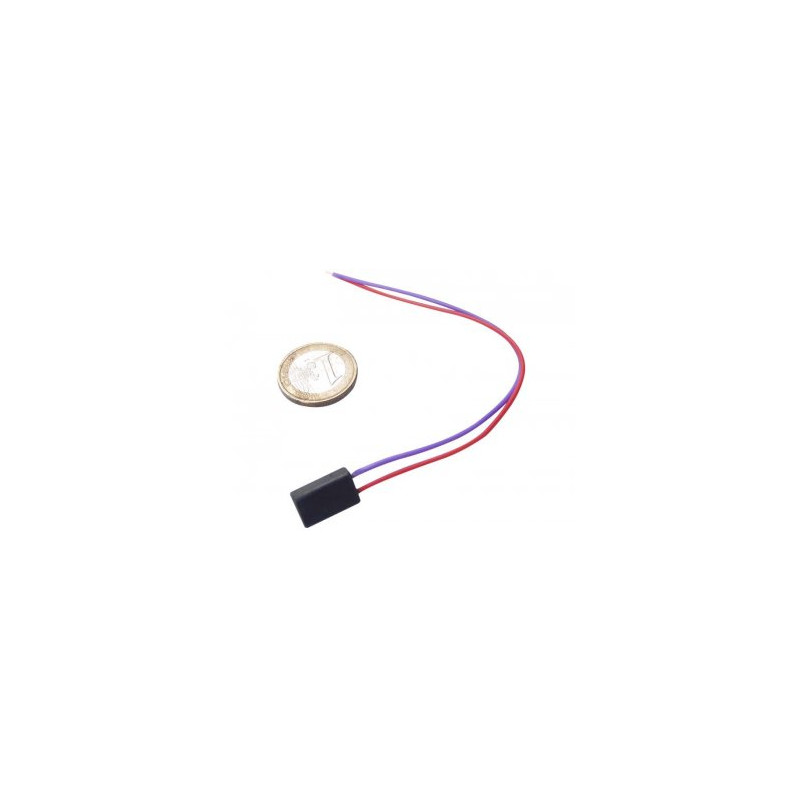

Nanoflash

The Nanoflash is one of the worldwide smallest electronic flasher relay on the bike market. With a size of 15 mm x 9 mm x 5 mm will it fit almost everywhere in your bike. The Nanoflash can handle loads between 0,1 Watt and 42 Watt. It replaces the standard flasher relay in custombikes. The Nanoflash is the first choice when the available space for the installation is small. The flasher speed is - of course constant if the load is minimum 0,1 Watt, no matter if modern led lights or traditional halogen light bulbs are be connected.

DP9812
20 Items

Data sheet

Manufacturer
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Dimensions
15 mm x 9 mm x 5 mm
15 mm x 9 mm x 5 mm
Body material
ABS
Input voltage range
8 - 18 Volt
Producent
27404 Rhade
Axel Joost Elektronik
Dipl.-Ing. Axel Joost
Germany
Selsinger Str. 28
Maximum current
3
5 Ampere
Maximum power
42 Watt
